For generations, a foundation meant digging, pouring concrete, and waiting days for it to cure. Helical piles throw that script out. They are steel shafts with a screw-like blade, wound into the ground in minutes, ready to build on almost immediately.
Photo by Roktim | রক্তিম 🇧🇩 on Pexels
The method has quietly taken over decks, additions, and outbuildings. The equipment driving that shift, such as the Helical pile machine built by New York manufacturer Iron Mechanics, makes installation fast and precise. This guide explains how it all works.
What Are Helical Piles?
They are deep foundation anchors that screw into the earth. Picture a large steel screw. A central shaft carries one or more helical plates that pull the pile down as it turns, much like a wood screw biting into a board.
Once driven to the right depth, the pile reaches stable, load-bearing soil below the frost line. That gives a footing as solid as concrete, without any concrete at all. The structure bolts straight onto a bracket at the top.
The appeal is speed and certainty. Because the soil is not disturbed by digging, and because installation torque can be measured directly, a crew knows the moment a pile has reached its rated capacity. There is no guesswork and no waiting.
They suit a huge range of jobs. Decks, sheds, solar arrays, boardwalks, room additions, and even tiny homes all sit happily on helical piles. For anyone planning home projects, that versatility is a big part of why they have moved from niche to mainstream.
Why Choose Helical Piles Over Concrete Footings?
Because they solve most of concrete’s drawbacks at once. For many projects, the advantages are decisive. The main ones are:
- Speed. Piles install in minutes, with no curing wait.
- Immediate load. You can build the same day, not days later.
- Clean sites. No spoil piles, no concrete trucks, less mess.
- All-season install. They go in even in frozen or wet ground.
- Measured capacity. Install torque confirms the load rating on the spot.
Each of these saves time, money, or both on a real job site. The same modern thinking that fills the building industry showroom floor has reached foundations. Helical piles are the result.
They also tread lightly. With no excavation and minimal disturbance, helical piles work well on sensitive sites, near trees, or where access is tight. That flexibility is hard for poured footings to match.

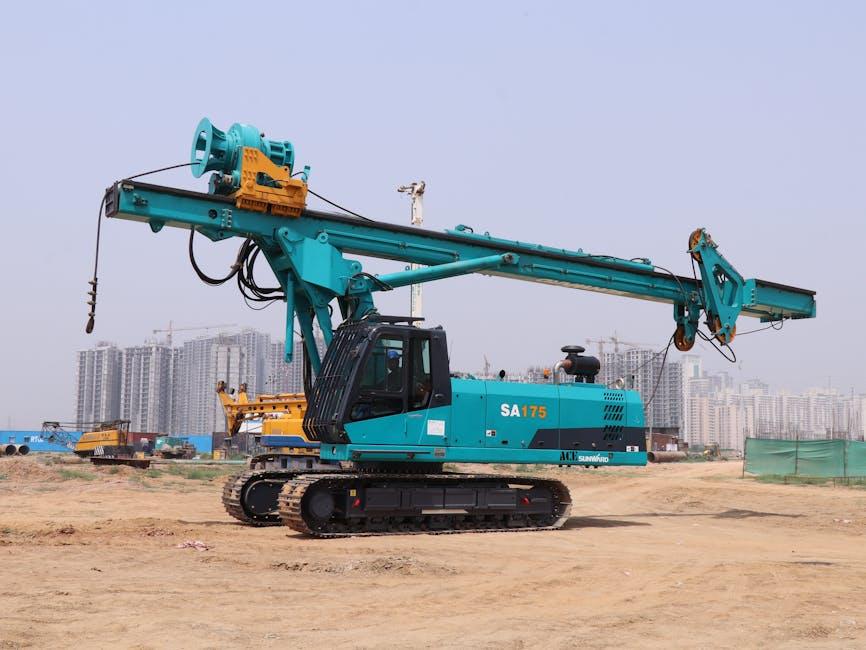

How Does a Helical Pile Machine Work?
By delivering precise, powerful rotation to drive the pile down. Modern installers are compact, tracked machines with a hydraulic drive head that grips and turns the pile. A few specifications show their capability:
- Drive heads commonly deliver 5,600 to 11,000 Nm of torque.
- Piles range from roughly 56 to 219 mm in shaft diameter.
- Machines operate from about minus 40 to plus 40 degrees Celsius.
- A capable rig installs dozens of piles in a single day.
Those numbers translate to real productivity. A self-propelled, tracked chassis moves across a site under its own power. Wireless remote control lets a single operator place piles accurately and safely.
Running one is a genuine skill, much like other heavy gear. Demand for trained equipment operators reflects how specialized this work has become, and a well-maintained machine can stay productive for up to 10 years.
Are Helical Piles Right for Your Project?
Often, but not always; it depends on the build and the ground. The table below frames the decision.
| Factor | Helical Piles | Concrete Footings |
| Install speed | Minutes per pile | Days including cure |
| Ready to build | Immediately | After curing |
| Site mess | Minimal | Significant |
| Cold/wet weather | Works fine | Often delayed |
| Best for | Decks, additions, sheds | Large slab foundations |
Photo by Action Construction Equipment Ltd. – ACE on Pexels
For decks, additions, and light structures, helical piles usually win on speed and cleanliness. For a full basement or a heavy slab, traditional concrete still has its place.
Ground conditions matter too. Because installation disturbs the soil far less than digging, the safety considerations differ from open excavation work. Any deep foundation job still calls for proper planning and a qualified installer.
What Sets Helical Piles Apart
- Helical piles screw into the ground like a giant steel screw.
- They reach load-bearing soil and are ready to build on at once.
- Installation is fast, clean, and possible year-round.
- A tracked machine drives them with measured, repeatable torque.
- They excel for decks, additions, and light structures.
The Case for Helical Piles
Helical piles represent one of those rare upgrades that is faster, cleaner, and more predictable than the method it replaces. For decks, additions, and countless light structures, they turn a multi-day concrete pour into a same-day job. Paired with a capable installation machine and a qualified crew, they deliver a foundation you can build on immediately. For a growing share of projects, the old way of digging and waiting is simply hard to justify.
Frequently Asked Questions
How Long Do Helical Piles Last?
Properly specified and installed, helical piles can last for decades, often the full lifespan of the structure they support. Galvanised steel resists corrosion, and because the load rating is confirmed by torque during installation, the foundation performs as engineered. Soil conditions and steel coating are the main factors in longevity.
Are Helical Piles as Strong as Concrete?
Yes, for most residential and light commercial uses. Each pile is driven until its installation torque confirms it has reached the required load capacity, giving a precise, verified rating. For decks, additions, and similar structures, they match or exceed traditional footings while installing far faster.
Can You Install Helical Piles Yourself?
Small manual or handheld systems exist for very light jobs, but most installations use specialized machinery and should be done by a trained crew. Correct depth, torque, and placement matter for safety and performance, so for anything load-bearing, hiring a qualified installer is the sensible choice.
What Can You Build On Helical Piles?
A wide range of structures: decks, porches, room additions, sheds, solar arrays, boardwalks, and even tiny homes. They suit almost any light to medium structure, especially on tricky sites. Larger projects like full basements or heavy slabs are usually better served by traditional concrete foundations.
